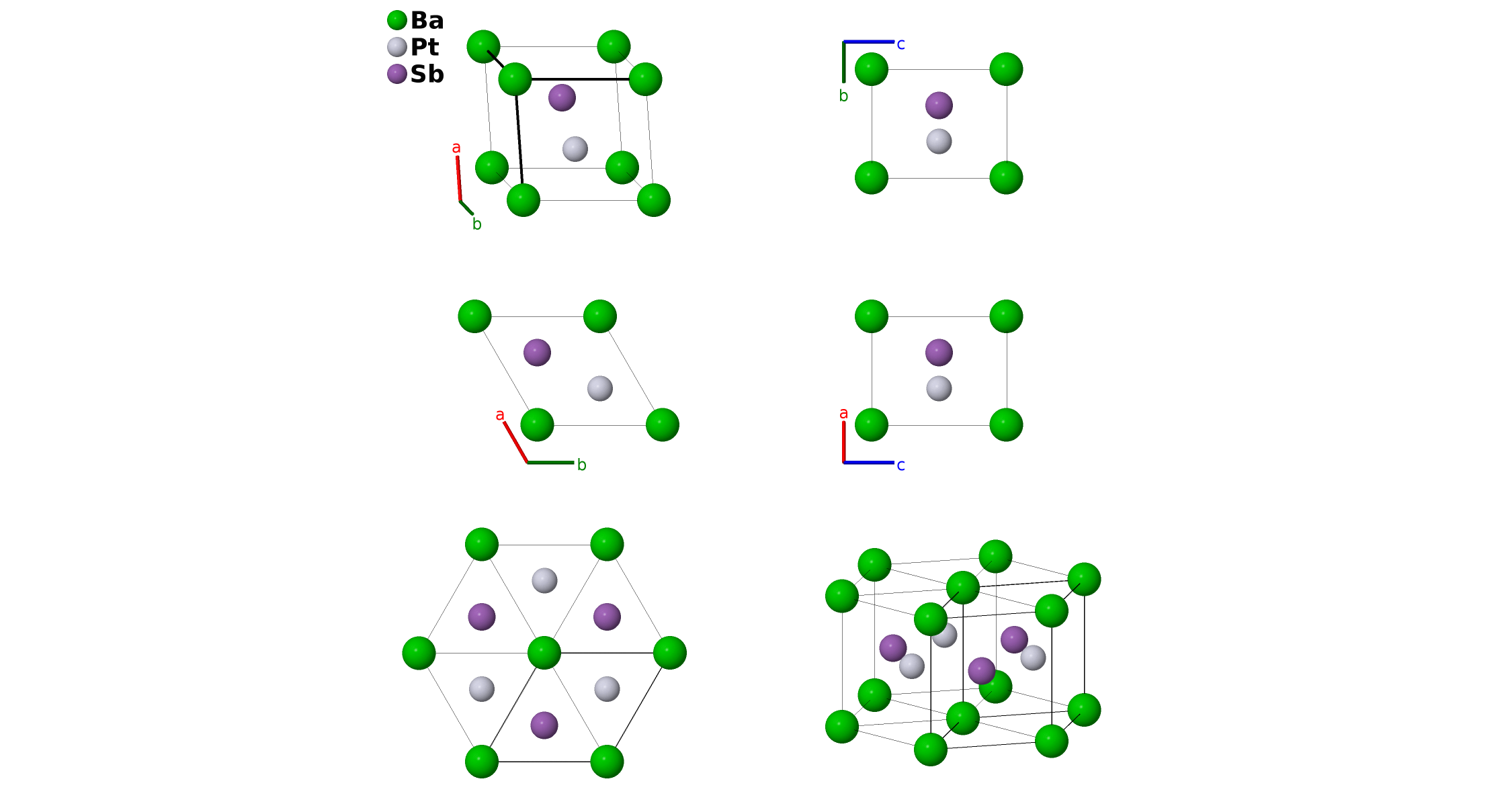

BaPtSb Structure: ABC_hP3_187_b_c_e-001
| Prototype | BaPtSb |
| AFLOW prototype label | ABC_hP3_187_b_c_e-001 |
| ICSD | 59186 |
| Pearson symbol | hP3 |
| Space group number | 187 |
| Space group symbol | $P\overline{6}m2$ |
| AFLOW prototype command |
aflow --proto=ABC_hP3_187_b_c_e-001
--params=$a, \allowbreak c/a$ |
Other compounds with this structure
AsKZn, PtSbSr, DyPPt, GdPPt, KSbZn, LuPPt, PPtSm, PPtTb, PPtTm, PPtY, PPtYb, LiBaSi, KZnAs

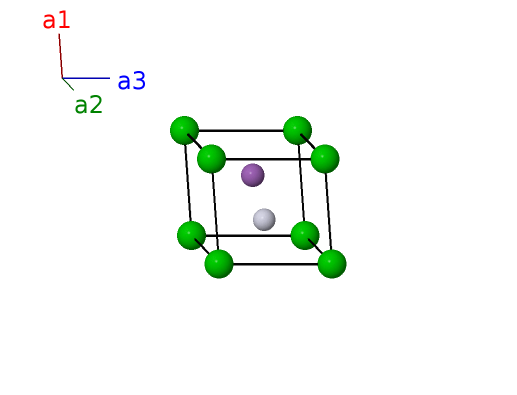

\[ \begin{array}{ccc}
\mathbf{a_{1}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}- \frac{\sqrt{3}}{2}a \,\mathbf{\hat{y}}\\\mathbf{a_{2}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{\sqrt{3}}{2}a \,\mathbf{\hat{y}}\\\mathbf{a_{3}}&=&c \,\mathbf{\hat{z}}
\end{array}\]
Basis vectors
| Lattice coordinates | Cartesian coordinates | Wyckoff position | Atom type | |||
|---|---|---|---|---|---|---|
| $\mathbf{B_{1}}$ | = | $\frac{1}{2} \, \mathbf{a}_{3}$ | = | $\frac{1}{2}c \,\mathbf{\hat{z}}$ | (1b) | Ba I |
| $\mathbf{B_{2}}$ | = | $\frac{1}{3} \, \mathbf{a}_{1}+\frac{2}{3} \, \mathbf{a}_{2}$ | = | $\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{\sqrt{3}}{6}a \,\mathbf{\hat{y}}$ | (1c) | Pt I |
| $\mathbf{B_{3}}$ | = | $\frac{2}{3} \, \mathbf{a}_{1}+\frac{1}{3} \, \mathbf{a}_{2}$ | = | $\frac{1}{2}a \,\mathbf{\hat{x}}- \frac{\sqrt{3}}{6}a \,\mathbf{\hat{y}}$ | (1e) | Sb I |
References
- G. Wenski and A. Mewis, Trigonal-planar koordiniertes Platin: Darstellung und Struktur von SrPtAs (Sb), BaPtP (As, Sb), SrPt$_x$P$_{2-x}$, SrPt$_x$As$_{0.90}$ und BaPt$_x$As$_{0.90}$, Z. Anorganische und Allgemeine Chemie 535, 110–122 (1986), doi:10.1002/zaac.19865350413.
Found in
- P. Villars and K. Cenzual, Pearson's Crystal Data – Crystal Structure Database for Inorganic Compounds (2013). ASM International.
Prototype Generator
aflow --proto=ABC_hP3_187_b_c_e --params=$a,c/a$
