CoSn ($B35$) Structure: AB_hP6_191_f_ad-001
| Prototype | CoSn |
| AFLOW prototype label | AB_hP6_191_f_ad-001 |
| Strukturbericht designation | $B35$ |
| ICSD | 55564 |
| Pearson symbol | hP6 |
| Space group number | 191 |
| Space group symbol | $P6/mmm$ |
| AFLOW prototype command |
aflow --proto=AB_hP6_191_f_ad-001
--params=$a, \allowbreak c/a$ |
Other compounds with this structure
FeGe, PbRh, NTa, PtTl, InNi

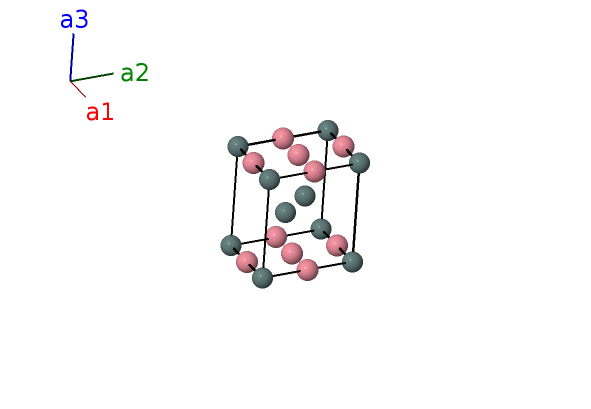

\[ \begin{array}{ccc}
\mathbf{a_{1}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}- \frac{\sqrt{3}}{2}a \,\mathbf{\hat{y}}\\\mathbf{a_{2}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{\sqrt{3}}{2}a \,\mathbf{\hat{y}}\\\mathbf{a_{3}}&=&c \,\mathbf{\hat{z}}
\end{array}\]
Basis vectors
| Lattice coordinates | Cartesian coordinates | Wyckoff position | Atom type | |||
|---|---|---|---|---|---|---|
| $\mathbf{B_{1}}$ | = | $0$ | = | $0$ | (1a) | Sn I |
| $\mathbf{B_{2}}$ | = | $\frac{1}{3} \, \mathbf{a}_{1}+\frac{2}{3} \, \mathbf{a}_{2}+\frac{1}{2} \, \mathbf{a}_{3}$ | = | $\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{\sqrt{3}}{6}a \,\mathbf{\hat{y}}+\frac{1}{2}c \,\mathbf{\hat{z}}$ | (2d) | Sn II |
| $\mathbf{B_{3}}$ | = | $\frac{2}{3} \, \mathbf{a}_{1}+\frac{1}{3} \, \mathbf{a}_{2}+\frac{1}{2} \, \mathbf{a}_{3}$ | = | $\frac{1}{2}a \,\mathbf{\hat{x}}- \frac{\sqrt{3}}{6}a \,\mathbf{\hat{y}}+\frac{1}{2}c \,\mathbf{\hat{z}}$ | (2d) | Sn II |
| $\mathbf{B_{4}}$ | = | $\frac{1}{2} \, \mathbf{a}_{1}$ | = | $\frac{1}{4}a \,\mathbf{\hat{x}}- \frac{\sqrt{3}}{4}a \,\mathbf{\hat{y}}$ | (3f) | Co I |
| $\mathbf{B_{5}}$ | = | $\frac{1}{2} \, \mathbf{a}_{2}$ | = | $\frac{1}{4}a \,\mathbf{\hat{x}}+\frac{\sqrt{3}}{4}a \,\mathbf{\hat{y}}$ | (3f) | Co I |
| $\mathbf{B_{6}}$ | = | $\frac{1}{2} \, \mathbf{a}_{1}+\frac{1}{2} \, \mathbf{a}_{2}$ | = | $\frac{1}{2}a \,\mathbf{\hat{x}}$ | (3f) | Co I |
References
- A. Larsson, M. Haeberlein, S. Lidin, and U. Schwarz, Single crystal structure refinement and high-pressure properties of CoSn, J. Alloys Compd. 240, 79–84 (1996), doi:10.1016/0925-8388(95)02189-2.
Prototype Generator
aflow --proto=AB_hP6_191_f_ad --params=$a,c/a$
