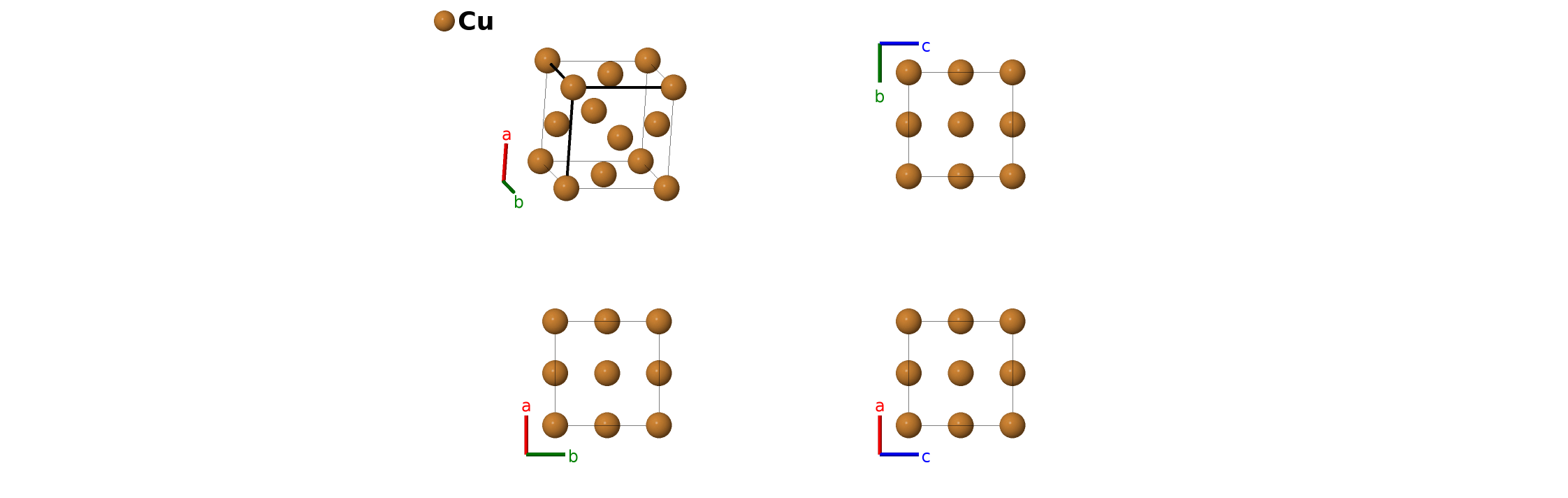

Face-Centered Cubic (Cu, $A1$, fcc) Structure: A_cF4_225_a-001
| Prototype | Cu |
| AFLOW prototype label | A_cF4_225_a-001 |
| Strukturbericht designation | $A1$ |
| ICSD | 627114 |
| Pearson symbol | cF4 |
| Space group number | 225 |
| Space group symbol | $Fm\overline{3}m$ |
| AFLOW prototype command |
aflow --proto=A_cF4_225_a-001
--params=$a$ |
Other compounds with this structure
Al, Ag, Au, Ce, Ir, Ni, Pb, Pd, Pt, Rh, Sr, Tb, Th

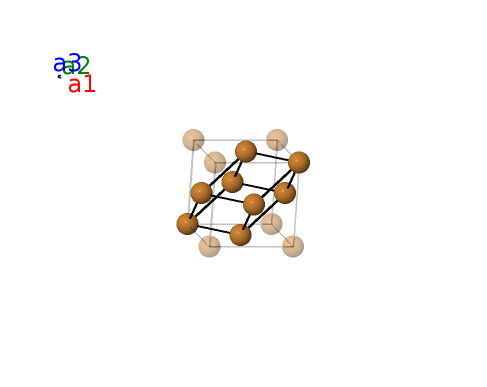

\[ \begin{array}{ccc}
\mathbf{a_{1}}&=&\frac{1}{2}a \,\mathbf{\hat{y}}+\frac{1}{2}a \,\mathbf{\hat{z}}\\\mathbf{a_{2}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{1}{2}a \,\mathbf{\hat{z}}\\\mathbf{a_{3}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{1}{2}a \,\mathbf{\hat{y}}
\end{array}\]
Basis vectors
| Lattice coordinates | Cartesian coordinates | Wyckoff position | Atom type | |||
|---|---|---|---|---|---|---|
| $\mathbf{B_{1}}$ | = | $0$ | = | $0$ | (4a) | Cu I |
References
- M. E. Straumanis and L. S. Yu, Lattice parameters, densities, expansion coefficients and perfection of structure of Cu and of Cu-In α phase, Acta Cryst. 25, 676–682 (1969), doi:10.1107/S0567739469001549.
Prototype Generator
aflow --proto=A_cF4_225_a --params=$a$
