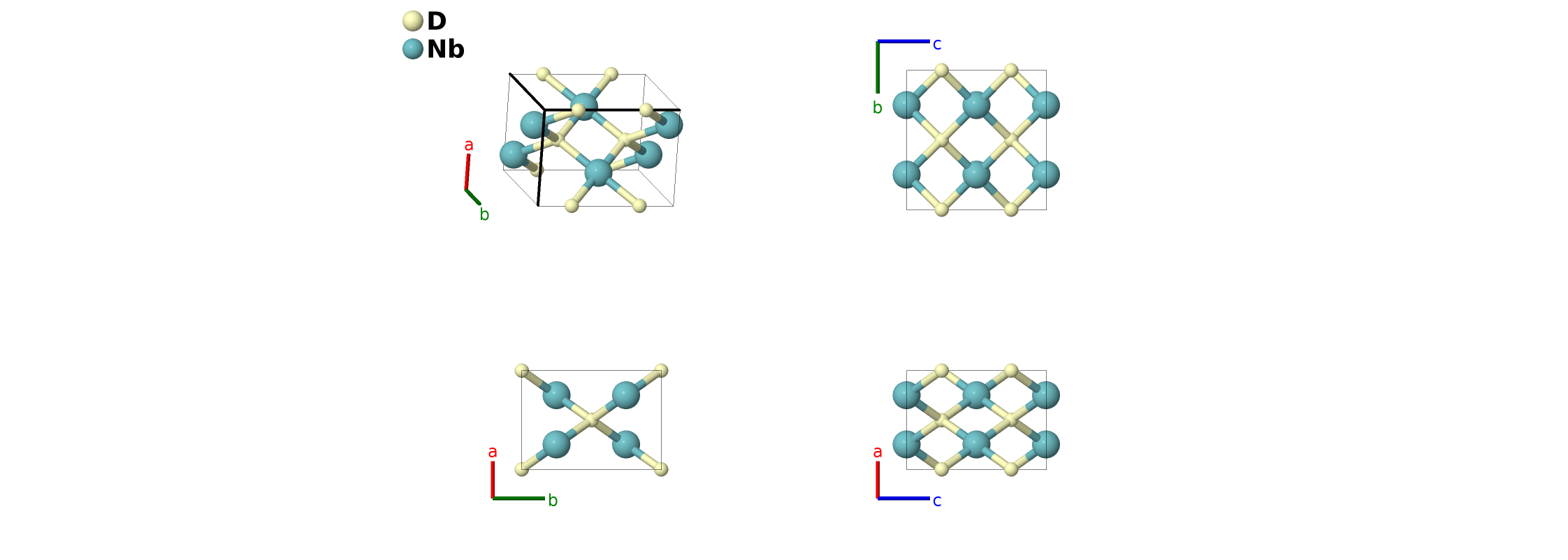

NbD Structure: AB_oC8_66_a_e-001
| Prototype | HNb |
| AFLOW prototype label | AB_oC8_66_a_e-001 |
| ICSD | 71093 |
| Pearson symbol | oC8 |
| Space group number | 66 |
| Space group symbol | $Cccm$ |
| AFLOW prototype command |
aflow --proto=AB_oC8_66_a_e-001
--params=$a, \allowbreak b/a, \allowbreak c/a$ |
- The deuterium sites in this structure have 5% vacancies.
- (Somenkov, 1968) do not actually give the lattice constants for this structure. They are inferred from the Nb-H and H-H distances given for NbH$_{0.85}$.
- (Somenkov, 1968) described this structure in space group $Pnnn$ #48, but the positions given actually for the conventional cell of space group $Cccm$ #66. (Cenzual, 1991)

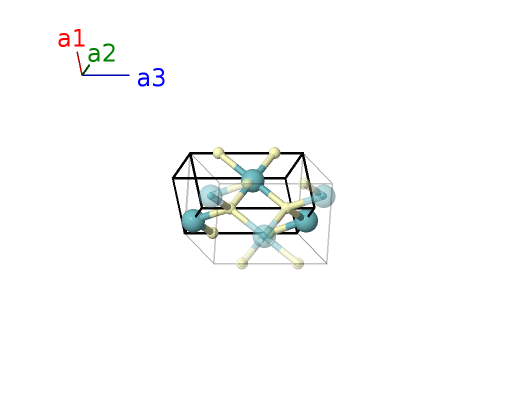

\[ \begin{array}{ccc}
\mathbf{a_{1}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}- \frac{1}{2}b \,\mathbf{\hat{y}}\\\mathbf{a_{2}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{1}{2}b \,\mathbf{\hat{y}}\\\mathbf{a_{3}}&=&c \,\mathbf{\hat{z}}
\end{array}\]
Basis vectors
| Lattice coordinates | Cartesian coordinates | Wyckoff position | Atom type | |||
|---|---|---|---|---|---|---|
| $\mathbf{B_{1}}$ | = | $\frac{1}{4} \, \mathbf{a}_{3}$ | = | $\frac{1}{4}c \,\mathbf{\hat{z}}$ | (4a) | D I |
| $\mathbf{B_{2}}$ | = | $\frac{3}{4} \, \mathbf{a}_{3}$ | = | $\frac{3}{4}c \,\mathbf{\hat{z}}$ | (4a) | D I |
| $\mathbf{B_{3}}$ | = | $\frac{1}{2} \, \mathbf{a}_{2}$ | = | $\frac{1}{4}a \,\mathbf{\hat{x}}+\frac{1}{4}b \,\mathbf{\hat{y}}$ | (4e) | Nb I |
| $\mathbf{B_{4}}$ | = | $\frac{1}{2} \, \mathbf{a}_{1}+\frac{1}{2} \, \mathbf{a}_{3}$ | = | $\frac{1}{4}a \,\mathbf{\hat{x}}- \frac{1}{4}b \,\mathbf{\hat{y}}+\frac{1}{2}c \,\mathbf{\hat{z}}$ | (4e) | Nb I |
References
- V. A. Somenkov, A. V. Gurskaya, M. G. Zemlyanov, M. E. Kost, N. A. Chernoplekov, and A. A. Chertkov, Neutron Scattering Study of Structure and Phase Transitions of Niobium Hydrides and Deuterides, Sov. Phys. – Solid State 10, 1076–1082 (1968).
Found in
- K. Cenzual, L. M. Gelato, M. Penzo, and E. Parthé, Inorganic structure types with revised space groups. I, Acta Crystallogr. Sect. B 47, 433–439 (1991), doi:10.1107/S0108768191000903.
Prototype Generator
aflow --proto=AB_oC8_66_a_e --params=$a,b/a,c/a$
