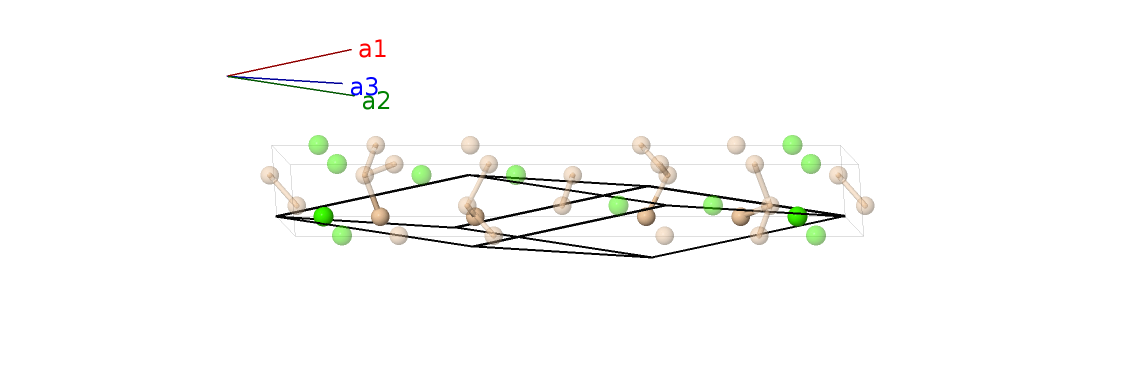

CaSi$_{2}$ ($C12$) Structure: AB2_hR6_166_c_2c-002
| Prototype | CaSi$_{2}$ |
| AFLOW prototype label | AB2_hR6_166_c_2c-002 |
| Strukturbericht designation | $C12$ |
| ICSD | 32006 |
| Pearson symbol | hR6 |
| Space group number | 166 |
| Space group symbol | $R\overline{3}m$ |
| AFLOW prototype command |
aflow --proto=AB2_hR6_166_c_2c-002
--params=$a, \allowbreak c/a, \allowbreak x_{1}, \allowbreak x_{2}, \allowbreak x_{3}$ |
Other compounds with this structure
CaGe$_{2}$
- Although this has the same crystallographic structure as SmSI, the layering is substantially different.
- There is no ICSD or CCDC entry for (Castillo, 2016). We use the ICSD entry from (Evers, 1979).
- Hexagonal settings of this structure can be obtained with the option
--hex.
\[ \begin{array}{ccc}
\mathbf{a_{1}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}- \frac{\sqrt{3}}{6}a \,\mathbf{\hat{y}}+\frac{1}{3}c \,\mathbf{\hat{z}}\\\mathbf{a_{2}}&=&\frac{1}{\sqrt{3}}a \,\mathbf{\hat{y}}+\frac{1}{3}c \,\mathbf{\hat{z}}\\\mathbf{a_{3}}&=&- \frac{1}{2}a \,\mathbf{\hat{x}}- \frac{\sqrt{3}}{6}a \,\mathbf{\hat{y}}+\frac{1}{3}c \,\mathbf{\hat{z}}
\end{array}\]
Basis vectors
| Lattice coordinates | Cartesian coordinates | Wyckoff position | Atom type | |||
|---|---|---|---|---|---|---|
| $\mathbf{B_{1}}$ | = | $x_{1} \, \mathbf{a}_{1}+x_{1} \, \mathbf{a}_{2}+x_{1} \, \mathbf{a}_{3}$ | = | $c x_{1} \,\mathbf{\hat{z}}$ | (2c) | Ca I |
| $\mathbf{B_{2}}$ | = | $- x_{1} \, \mathbf{a}_{1}- x_{1} \, \mathbf{a}_{2}- x_{1} \, \mathbf{a}_{3}$ | = | $- c x_{1} \,\mathbf{\hat{z}}$ | (2c) | Ca I |
| $\mathbf{B_{3}}$ | = | $x_{2} \, \mathbf{a}_{1}+x_{2} \, \mathbf{a}_{2}+x_{2} \, \mathbf{a}_{3}$ | = | $c x_{2} \,\mathbf{\hat{z}}$ | (2c) | Si I |
| $\mathbf{B_{4}}$ | = | $- x_{2} \, \mathbf{a}_{1}- x_{2} \, \mathbf{a}_{2}- x_{2} \, \mathbf{a}_{3}$ | = | $- c x_{2} \,\mathbf{\hat{z}}$ | (2c) | Si I |
| $\mathbf{B_{5}}$ | = | $x_{3} \, \mathbf{a}_{1}+x_{3} \, \mathbf{a}_{2}+x_{3} \, \mathbf{a}_{3}$ | = | $c x_{3} \,\mathbf{\hat{z}}$ | (2c) | Si II |
| $\mathbf{B_{6}}$ | = | $- x_{3} \, \mathbf{a}_{1}- x_{3} \, \mathbf{a}_{2}- x_{3} \, \mathbf{a}_{3}$ | = | $- c x_{3} \,\mathbf{\hat{z}}$ | (2c) | Si II |
References
- S. M. Castillo, Z. Tang, A. P. Litvinchuk, and A. M. Guloy, Lattice Dynamics of the Rhombohedral Polymorphs of CaSi$_{2}$, Inorg. Chem. 55, 10203–10207 (2016), doi:10.1021/acs.inorgchem.6b01399.
- J. Evers, Transformation of Three-Centered Silicon Nets in CaSi$_{2}$, J. Solid State Chem. 28, 369–377 (1979), doi:10.1016/0022-4596(79)90087-2.
Prototype Generator
aflow --proto=AB2_hR6_166_c_2c --params=$a,c/a,x_{1},x_{2},x_{3}$
