Crystallography and Computational Quantum Mechanics Part VII:
31 and 32 Screw Axes in Rhombohedral
and Cubic Crystals
In the last part of this ePICS
tale of crystallographic concepts we introduced the
screw axis, a combination of translational and rotational
operations that leaves atoms winding along an axis like,
well, the thread of a screw. We showed how you can generate
2-fold, 3-fold, 4-fold, and 6-fold screw axes by starting
with an appropriate lattice and applying the
translation/rotation operations as you go along a lattice
vector.
One thing we did not mention in the previous discourse was
that we only showed screw axes that were along one of the
primitive vectors of the unit cell. In addition we only
discussed screw axes in primitive lattices which matched the
conventional lattice for a given crystal system. We didn't
mention screw axes in base-, body-, or face-centered
orthorhombic lattices, for example. This class also
includes
the body-centered
tetragonal (bct) lattice. It turns out that every
crystal with a bct lattice has four 21 screw axes
along the lines (±¼,±¼,z) in lattice
coordinates, and those without an inversion site have a
41 screw axis along the line (½ ½,
z). Neither of these axes are along the standard primitive
vectors of the lattice.
The best examples of these neglected screws are the ones
we're going to discuss here, the 31/32
screws that are found in rhombohedral and cubic systems. In
rhombohedral systems they are along the lines (⅔ 0 z)
and (⅓ 0 z), respectively, in the lattice coordinates
of
the hexagonal
conventional cell. Since cubic lattices are just
special cases of the rhombohedral lattice, all cubic systems

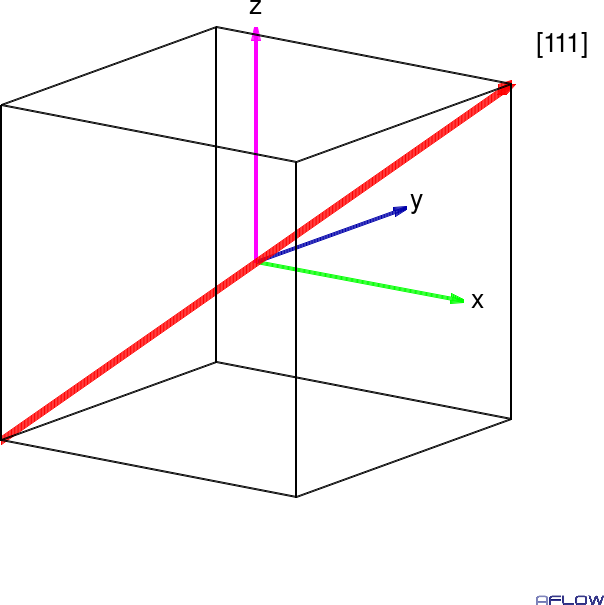

have these screw axes, but along each of the four <111>
diagonals, making a much richer system. This discussion can
also serve as a starting point for finding the other
off-lattice-vector screws that we mentioned above.
31/32 Rhombohedral Screw Axes
If you look at a PICStorial diagram of the symmetries of a
rhombohedral lattice, such as the one for space
group R3
from
the Hypertext
Book of Crystallographic Space Group Diagrams and
Tables, or
the Space
Group Diagrams
in The
Fascination of Crystals and Symmetry, you will see
six symbols that look like triangles with arms coming out of
each vertex. This is the symbol for a 31 screw
axis, if the arms are pointing counterclockwise, and a
32 axis if they are going clockwise. We'd like
to examine these axes and find out why they are here.
The Rhombohedral Lattice
We'll begin by reminding ourselves of how to describe a
rhombohedral lattice, which belongs to the
trigonal
crystal system. We can describe it using
the hexagonal
conventional lattice with lattice constants
ah and ch,
Alternatively, we can describe the system using the
the rhombohedral
primitive cell. If we use the hexagonal lattice
constants ah and ch the primitive
vectors can be written as
All of these vectors have the same length, which we'll call
ar, and the angle αr between any
pair of vectors is the same as the angle between any other
pair. From (2) we
find
The first thing we want to get out of all those equations is
that it takes three rhombohedral unit cells to fill the
hexagonal conventional cell. That means that if we place an
atom at the point
$x \, {\bf A}_{1} + y \, {\bf A}_{2} + z \, {\bf A}_{3}$
(8)
in the hexagonal cell then the rhombohedral translational
symmetry demands that we also have identical atoms at
which is ⅓ of the conventional hexagonal cell volume.

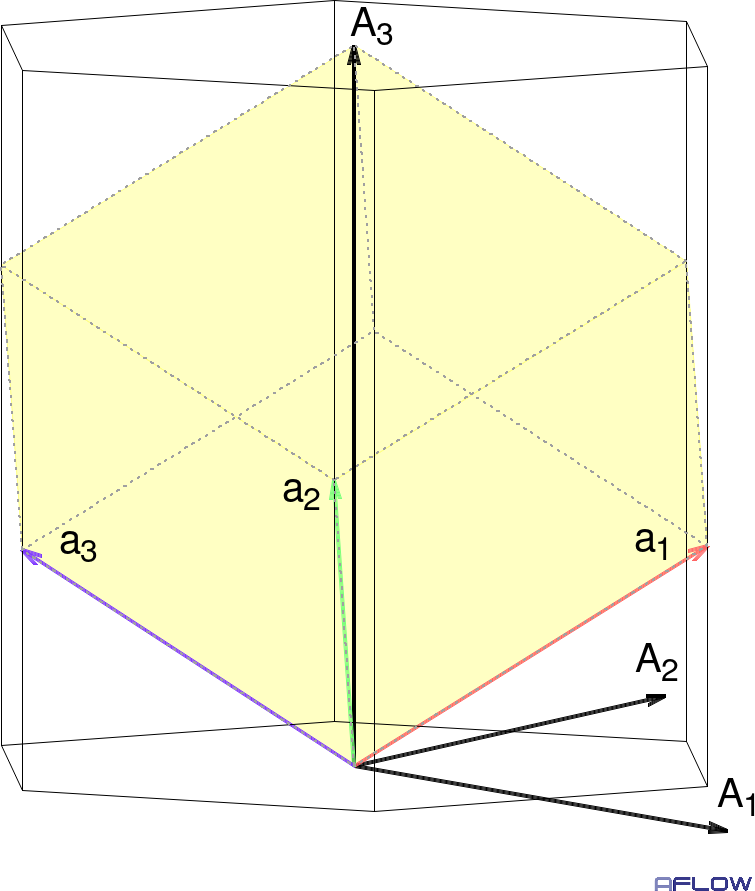

Figure 1: The primitive vectors for the
hexagonal conventional cell
(1)
(upper case letters)
and the rhombohedral primitive
cell (2) (lower
case letters) of a rhombohedral lattice. The
Wigner-Seitz cell of the hexagonal lattice is bounded by
solid lines. A non-Wigner-Seitz primitive unit cell is
bounded by dashed lines and highlighted in yellow.
Figure 1 shows the conventional
and primitive unit cells for the rhombohedral lattice
described above. We show the Wigner-Seitz conventional
hexagonal cell, but for the primitive cell it is simplest to
just use the cell bounded by the primitive
vectors (2). Using
(11) we know that it takes three
rhombohedral cells to fill up the hexagonal cell. It
doesn't really look like this in the figure, but if we slice
and dice the rhombohedral cells we can in fact fit three
cells into the hexagonal cell.
Rhombohedral Symmetry: Rotational and Translational
A crystal with primitive
vectors (2)
or (5)looks
like a rhombohedral lattice, but it doesn't describe a
rhombohedral crystal unless that crystal has a 3-fold
rotation axis around the A3
conventional lattice primitive vector.
That means that if we have an atom at
the point‡
If we combine these positions equations
with (8) through (10)
we see that every atom in a primitive rhombohedral cell is connected
to eight other atoms in the conventional hexagonal cell.
This
(xr,yr,zr)/(yr,xr,zr)/(zr,xr,yr)
symmetry is the defining characteristic of a rhombohedral
lattice, and one characteristic of a cubic lattice. If it
is not present, say if atoms (12) and (13) are silver and
(14) is gold, then this is not a rhombohedral or even a
trigonal lattice. It is at
best orthorhombic
or has even lower symmetry.
Often we'll find it easiest to express the atomic
positions in terms of the hexagonal primitive
vectors (1). In
that case we would write
Again if we are using the conventional hexagonal cell we must add the duplicates (8)
through (10) to each of the points in
(17) to fully describe the system.
We will use both
representations, (12)-(14)
and (17) depending on which is
most convenient. Usually this will be the later.
The bottom line here is that if we place one atom in a
rhombohedral lattice at (13) we
are actually determining the positions of three identical
atoms in the primitive rhombohedral cell and nine identical
atoms in the conventional hexagonal cell. This multiplicity
of atoms is generates the 31 and 32
screw axes in a rhombohedral lattice.
Development of the 31 and 32 Screw
Axes
Let's put all this together by actually looking the steps we
need to put together a 31 or a 32 screw
axis. The steps are described below and shown as an
animation in Figure 2 and
described
below.††

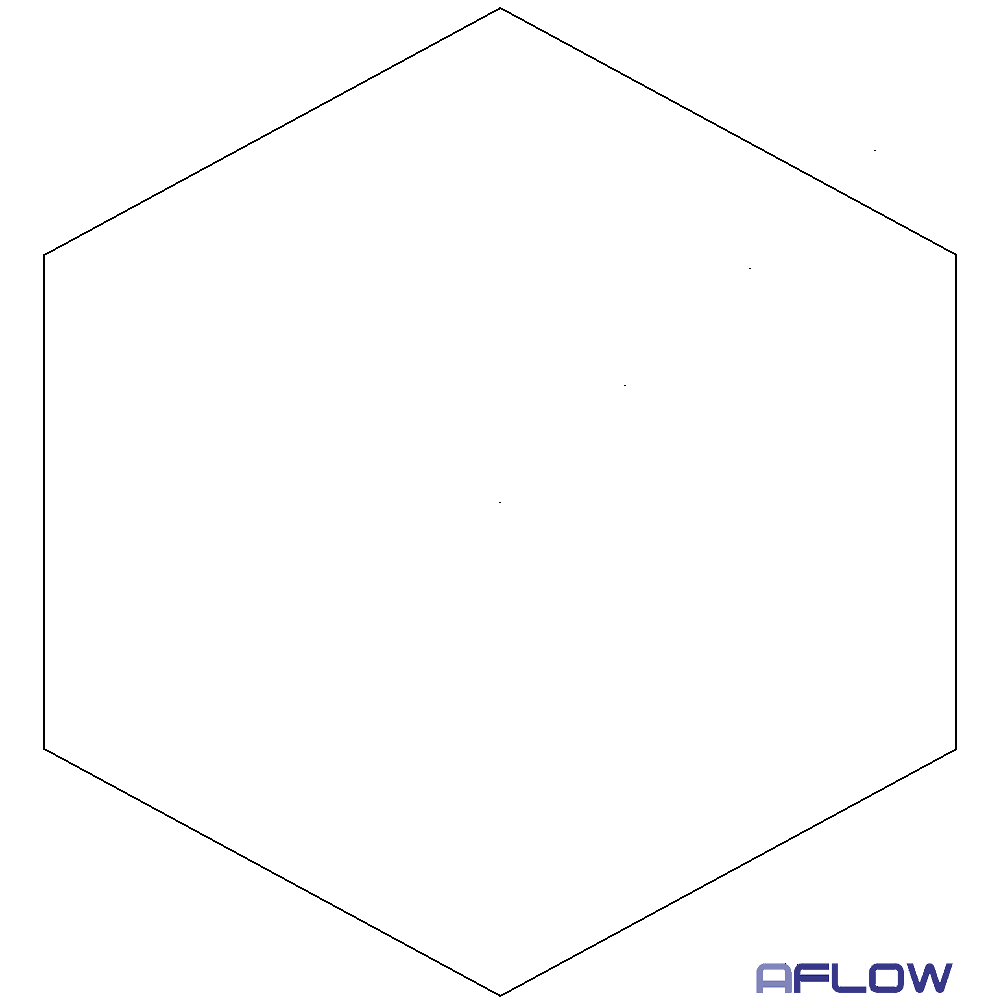

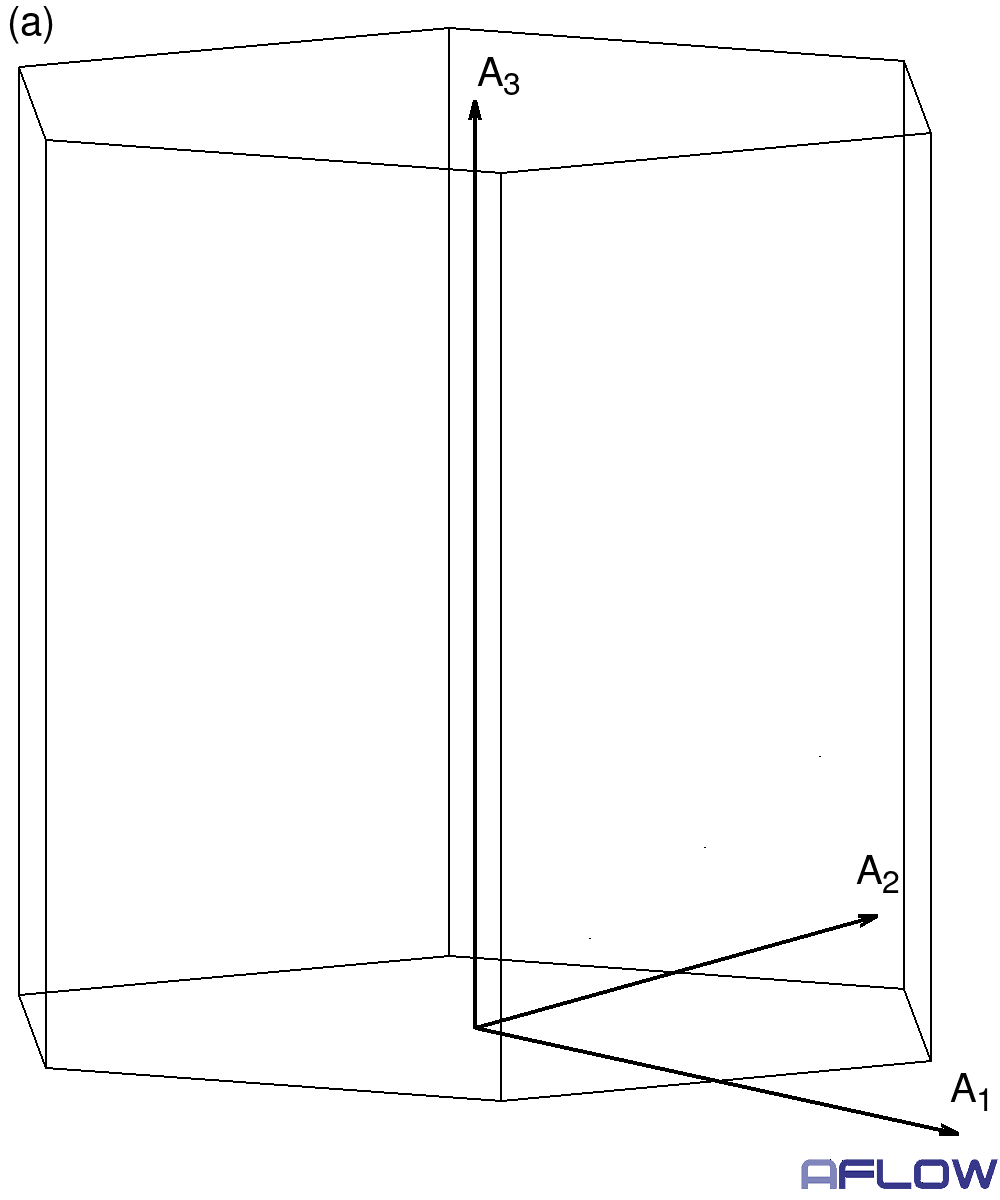

Figure 2: An animation of the construction
of a 31 screw lattice in a rhombohedral
crystal, starting with an atom at rhombohedral
coordinates (xr,yr,zr)
= (0.35,0.05,0.7). The view on the right is looking
down the
A3 3-fold rotation axis from
above. The colors of the atoms indicate their height
above the z = 0 plane, but all the atoms are actually
identical. The steps in the animation are described in
the text.
Figure 2 shows a
visualization of a 31 screw axis in a
rhombohedral lattice. We'll go through it step by step:
Start with a hexagonal lattice described by the
vectors (1). We
have drawn the Wigner-Seitz cell for that lattice.
Add the corresponding rhombohedral
lattice (2).
We draw a corresponding rhombohedral unit cell (briefly
highlighted in yellow), but this is not the Wigner-Seitz
cell of the lattice. Instead it is the unit cell
bounded by the primitive vectors. Trust us, it's a lot
easier to visualize what's going on here if we do it
this way.
Put an atom somewhere in the rhombohedral unit cell near
that line. We're putting it close to one of the screw
axes so that we can see the screw when we view it from
the top, but any coordinates that don't place the atoms
directly along the screw axis will do. We will color
the atoms by their height above the z = 0 plane. These
first three atoms have a red color
(⬤). The
color is only used to indicate the height of the atom
above in the hexagonal unit cell. In reality all of the
atoms in this screw are identical.
Because of the rotational
symmetry (17) there are two
identical axes at hexagonal coordinates (-⅓,0,zh)
and (⅓,⅓,zh). Rotational symmetry also
implies that the atom in (c) above is part of a triplet
set. If the first atom was in at the point
(xr,yr,zr) in
rhombohedral coordinates then the second will be at
be at (yr,zr,xr).
And the third is at
(zr,xr,yr).
Now duplicate the unit cell and move it in
the a1 direction. If you
like, we're treating the rhombohedral unit cells as
building blocks and stacking them on top of one another.
This particular stacking transports the atoms from (c),
(d), and (e) to new positions. Two of these atoms will
be outside the conventional hexagonal cell. Since we
don't care about them right now they'll vanish when they
cross out of the hexagonal cell (more or less). We can
always get them back using translational symmetry. This
new atom is in a plane ⅓ c above the atoms
in (c)-(e). We will color atoms in this plane green
(⬤).
Do the same thing, but now move the cell
to a2. Note that we could
also have done this by using the rotational
operation (13), using the
point we found in (f) as our starting point.
And add another cell a a3,
or use (14). In either case,
we now have three atoms above our original three atoms,
slightly offset from the originals.
So far we've only accounted for six of the nine atoms we
claimed were in the unit cell.
To start getting the other three atoms, shift our
original unit cell out to
-a1. This will give use one
atom in the hexagonal unit cell a distance
⅓ c below the atoms in (c)-(e). We will color
atoms in this plane blue (⬤).
Repeat with -a2, or apply
the rotation operations.
Finally add another unit cell
-a3 away from the original.

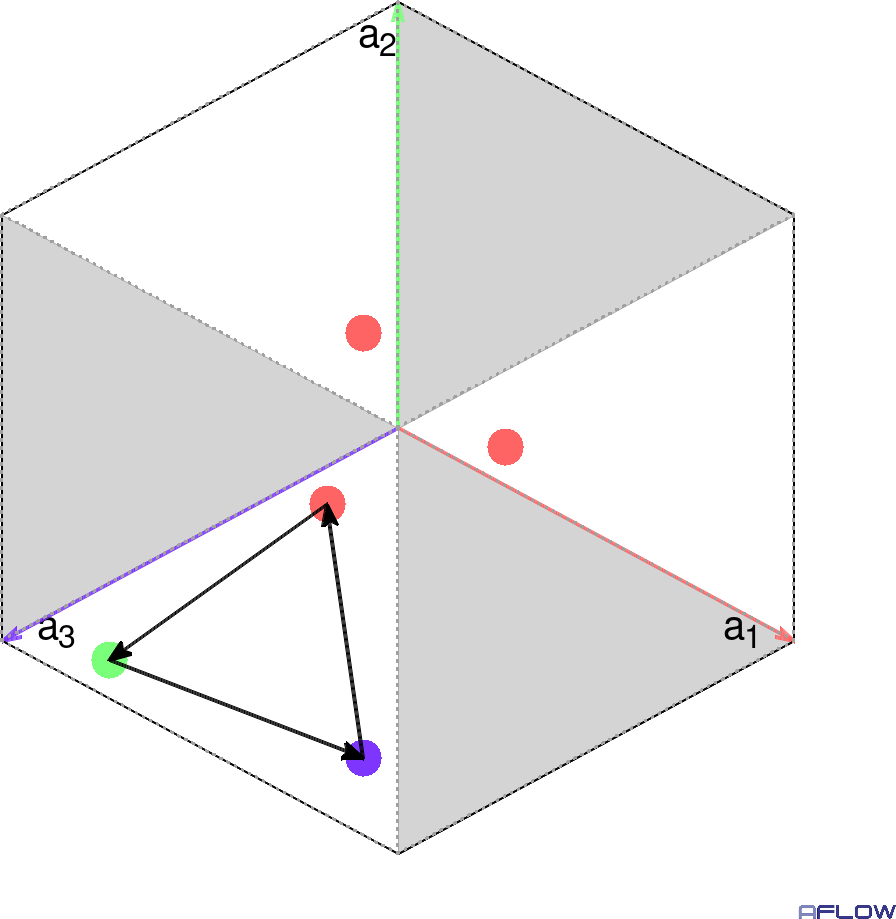

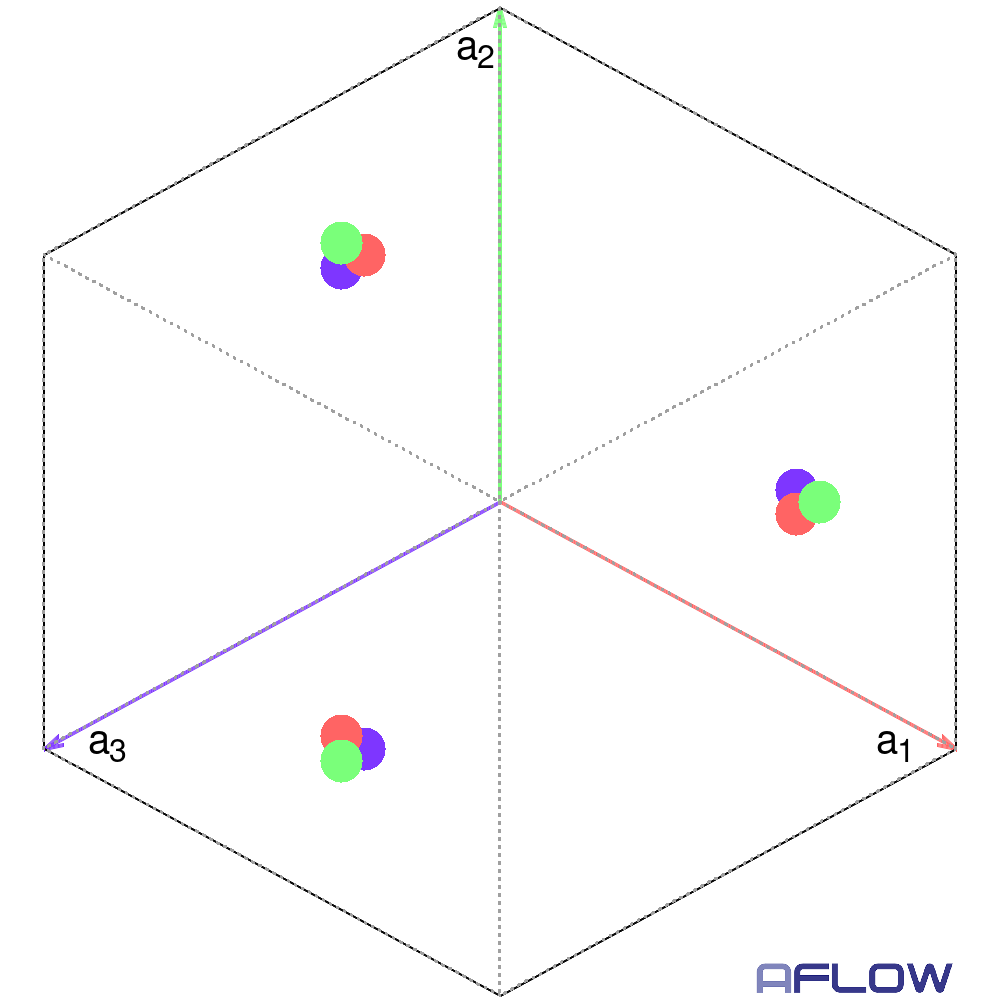

Figure 3: The final view of the
31 screw described
in Figure 2, viewed
looking down the z-axis. The colors indicate the height
of the atoms in the unit cell. The blue atoms
(⬤) are
lowest, with the red atoms
(⬤) a distance
⅓ c above the blue and the green atoms
(⬤)
⅓ c above the red atoms.
That's it. We now have a hexagonal unit cell with nine
atoms. Figure 3 freezes the
top view from Figure 2 at
its final from. There are three equivalent screw axes, and
winding counterclockwise (blue, red, green) if we view the
cell from the top. We've constructed a set of 31
screws.

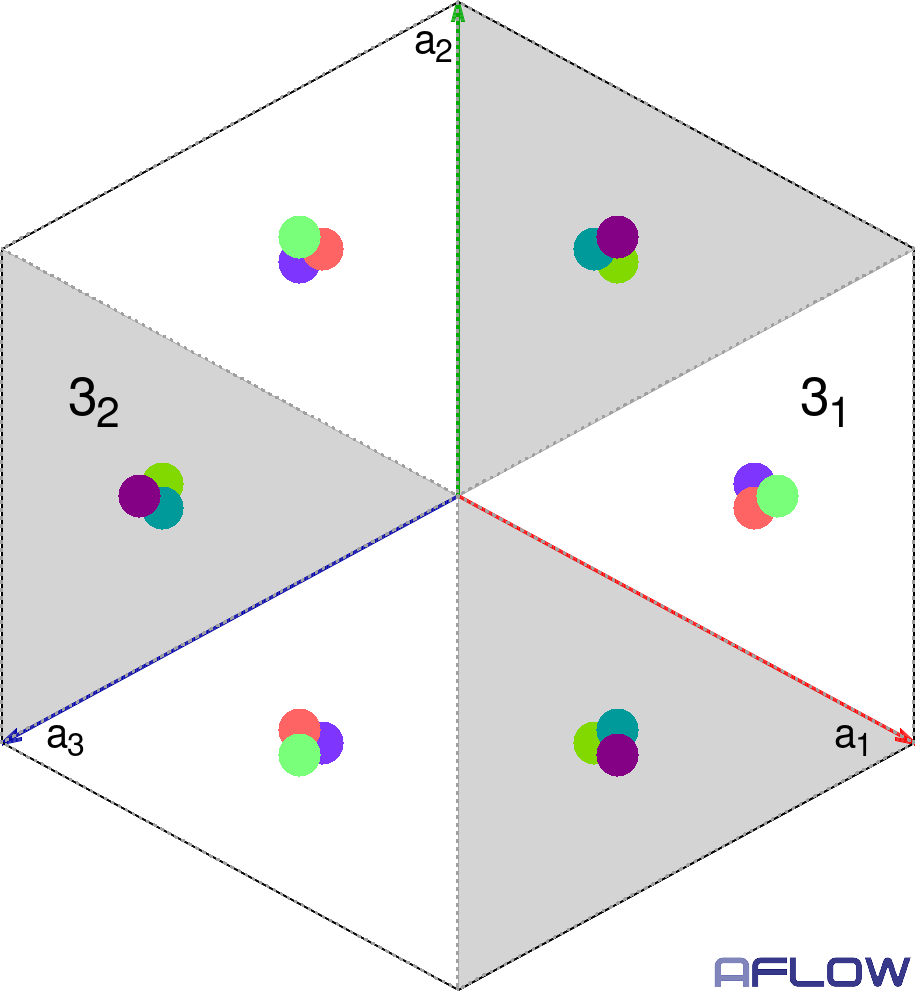

The final hexagonal unit cell
in Figure 3 looks kind of
empty. There are large open spaces. We can think of the
hexagonal cell as being made up of six triangular prisms,
but only three of them have atoms in them. What happens if
we put atoms in the currently unoccupied prisms?

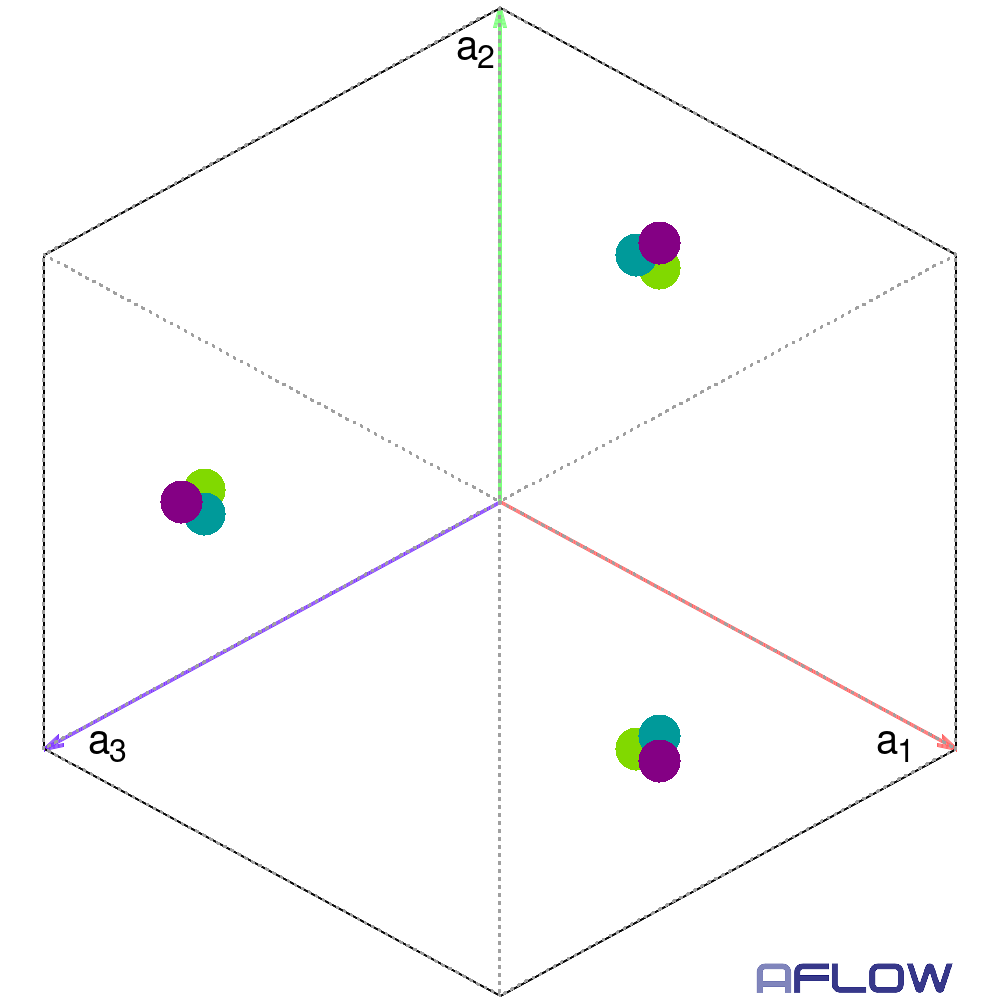

That result is shown
in Figure 4
and Figure 5. We created
these PICStures using the identical starting coordinates as
in Figure 2
and Figure 3, but we reversed
the first two coordinates. We then generate a screw by
following the same steps as
in Figure 2. Since the
screw we generate here is independent of the previous step
we use a different color scheme.
Figure 4: An animation of the construction
of a 32 screw axes in a rhombohedral
crystal, starting with an atom at rhombohedral
coordinates (xr,yr,zr)
= (0.05,0.35,0.7), reversing the first two coordinates
in Figure 2. The
steps used construct the screw are identical to the
steps outlined for that figure. The atoms are colored
by height above the z = 0 plane with the green atoms
(⬤) below the
blue atoms (⬤)
and the purple atoms
(⬤) near the
top of the cell. The screw turns clockwise as we move
from the bottom of the page to the top.
Figure 5: The final view of the
32 screw described
in Figure 4, viewed
looking down the z-axis. The heights of the atoms in
the hexagonal unit cell are indicated by the same colors
used in Figure 4.
In this new case the screw rotates clockwise as we come up
the z-axis, so it is a 32 screw. Here we should
again emphasize that this is a different screw then the one
shown in Figure 2
and Figure 3. The atoms in
the 32 screw can be a different species then the
atoms in the 31 screw. This will not be the case
in the cubic system, it's unique to
the rhombohedral lattice.
Figure 6: The final views of the
31 and 32 screws. The color
scheme again indicates the height of the atom in the
hexagonal cell, as in Figure
3.
If the crystal
has rhombohedral symmetry, an atom placed in the white
region (except at special high symmetry points) will
be part of a 31 screw. An atom in the gray
region will be part of a 32
screw. The screws are unconnected, the atoms in the
31 screw do not have to be the same as the
atoms in the 32 screw.
Figure 6 shows both screws,
and
highlights
the six prisms in this system. The white regions have
31 screws, while the gray regions have
32 screws. It's fair to ask if this is a
general rule. If we plop an atom down in the white region
and use the rotational and translational symmetry of the
rhombohedral lattice, do we always get a 31
screw? What about an atom in the 32 region?
Have we discovered a general rule?

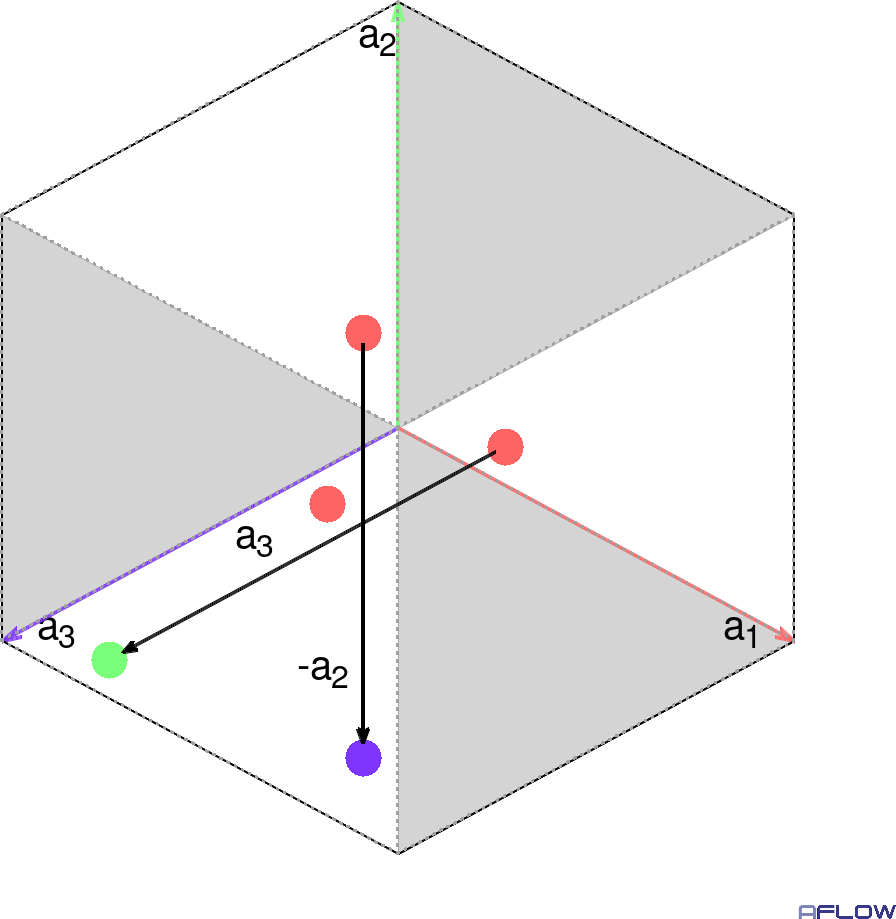

Figure 7: A demonstration that an atom in
placed in the white area will always be part of a
31 screw in a fully rhombohedral system. On
the left we take one of the red atoms
(⬤) as our
initial atom. Three-fold rotational symmetry places the
other two red atoms. The green
(⬤) and blue
(⬤) atoms are
connected to one of the red atoms by the indicated
rhombohedral primitive vector. The blue atom is below
the red atom in the z-direction, and the green atom is
above the red atom. On the right we construct a path
from the lowest blue atom to the red atom to the green
atom and back to the blue atom, though now it is
actually pointing to the blue atom plus the
translation A3, which would
be above the green atom. The rotation is
counterclockwise, so this is a 31 screw.
The left-hand part of Figure
7 sketches a general proof to this rule. We start with
a red atom in one of the pink prisms. The rotational
symmetry operations in a rhombohedral crystal,
((12) -
(14)) places the other two red
atoms. We then take the top red atom and apply the
translation -a2. This places a
blue atom in the lower white prism. This atom
is below the red atom in the z direction out of the
page. Similarly we start from the rightmost red atom and
translate it by a3. This results
in the green atom, which is above the red atom.
What's the rotation of these atoms about the screw axis? We
can see this in the right-hand part
of Figure 7. Starting with
the blue atom, the lowest atom in the cell, we move to the
next highest atom, the red atom. We go from there to the
green atom, which is above it in the z direction. Finally
we go from the green atom to another blue atom. This arrow
is not the the blue atom in the previous paragraph, but its
a1
+ a2
+ a3
= A3 = c $\hat{z}$
above it. The arrows then trace out a screw which rotates
counterclockwise as it comes out of the page, so it is a
31 screw. It's obvious that we can place the red
atom anywhere in a white area and get a 31 screw.
If however, we started in the region a similar process would
lead to a clockwise turning 32 screw.
What about the gray areas? If we do a mirror reflection of
the atoms in Figure 7 with
the reflection plane containing
the a2 primitive, then all of
the atoms in the white areas will be transferred to the
yellow areas. Since this is a reflection, the arrangement
of the atoms in the prisms will be reflected, as well as the
path shown in the right-hand side of the figure. The
reflected path will turn clockwise, indicating a
32 screw.
All of this proves, or at least sketches the proof of, the
theorem that atoms in the white areas form 31
screws and atoms in the yellow areas from 32
screws.
31/32 Cubic Screw Axes
Since we've learned that
all cubic
lattices can be expressed as special cases of the
rhombohedral lattice, can we assume that any cubic lattice
will also have pairs of 31 and 32
screw axes? The answer is yes, but things are a bit more
complicated than that.
Let's start with the obvious.
The simple, body-centered, and face-centered cubic
lattices are all special cases of the rhombohedral
lattice. We can relate these lattices to the
rhombohedral/hexagonal lattice. Remember that the hexagonal
lattice has primitive vectors in the form
where ah and ch are the hexagonal
lattice constants, while ar and
αr describe the rhombohedral lattice. The
relationships between the these lattice constants and the
corresponding cubic lattice constant ac are shown
in Table 1.
Table 1 The relationships between the cubic
lattice constant ac, the primitive lattice
volume Vp, the hexagonal lattice constants
(ah,ch) and the rhombohedral lattice
constants (ar,αr) describing
the cubic lattices in the hexagonal
setting (20) and the
rhombohedral setting (21)
respectively. The cubic lattice constant ac
describes
the conventional
cubic lattice.
Since a cubic system is just a special case of a
rhombohedral system it's not surprising that a cubic system
must have a 3-fold rotation axis as well. That must be
along the A3 conventional
(hexagonal) lattice vector. In terms of the primitive cell that's
${\bf a}_{1} + {\bf a}_{2} + {\bf a}_{3}$ .
In the standard representation for a simple cubic case
(not the one in (21))
this becomes
$a \, \hat{x} + a \, \hat{y} + a \, \hat{z}$ ,
which is the [111] direction in using the Miller
indices notation.
The 3-fold rotation axis only guarantees a rhombohedral
crystal. To lock in a cubic system we must also have
two 2-fold
rotation axis
or 21
screw axis along each of the lattice vectors of
the conventional
cubic lattice. If we chose the z-axis, then if we place
an atom at the point
$x \, a \, \hat{x} + y \, a \, \hat{y} + z \, a \,
\hat{z}$ (23)
and assume a 2-fold rotation axis, there must also be an identical atom at
$-x \, a \, \hat{x} -y \, a \, \hat{y} + z \, a \,
\hat{z}$ . (24)
This is equivalent to a z = 0 mirror plane. In
addition there must be x = 0 and y = 0 mirror planes.

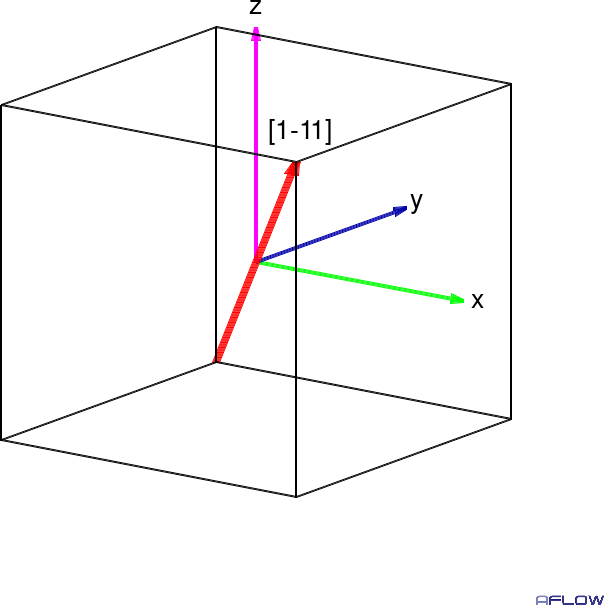

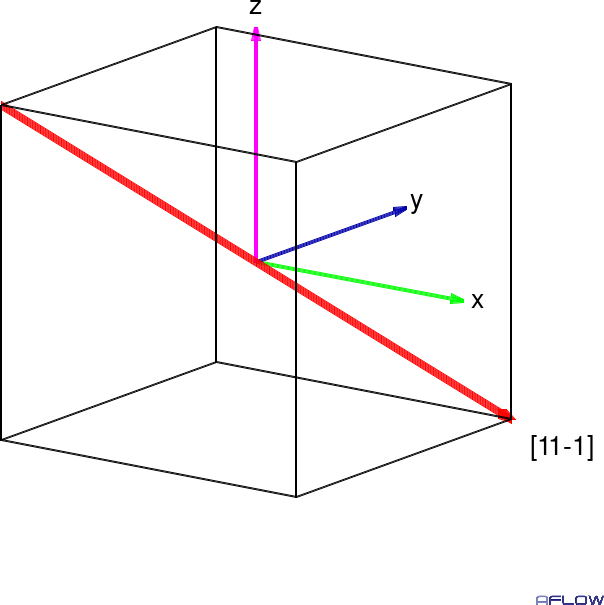

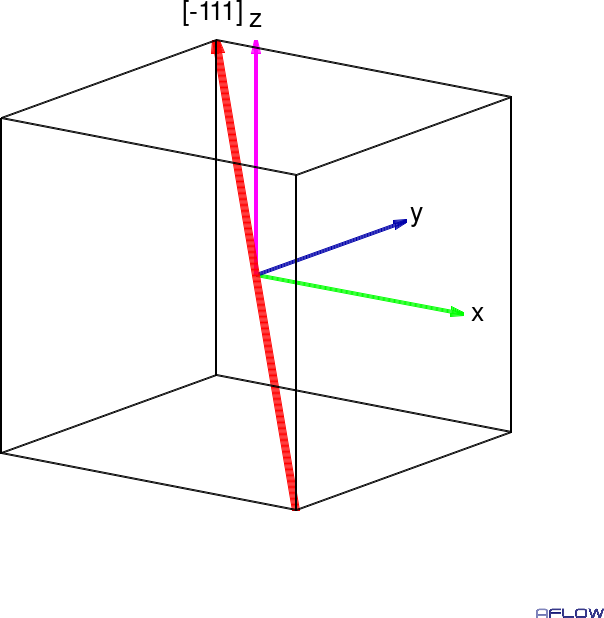

Figure 8: A simple cubic unit cell showing
the [111], [-111], [1-11], and [11-1] body diagonals,
all of which can be denote the <111> directions.
There is a 3-fold rotation axis around each diagonal.
The x-, y-, and z-axes are also 2-fold rotation axes,
while the planes x = 0, y = 0, and z = 0 are mirror
planes.
This everything everywhere symmetry of any cubic lattice,
simple, body-centered or face-centered, means that we could
align any of the four <111> directions along
the A3 axis of the hexagonal
unit cell shown in Figure 1,
which means that each of these diagonals is a 3-fold
rotation axis, as shown in Figure
8. In fact (Ubic, 2024) defines a
cubic crystal as a system that has four 3-fold rotation
axes.

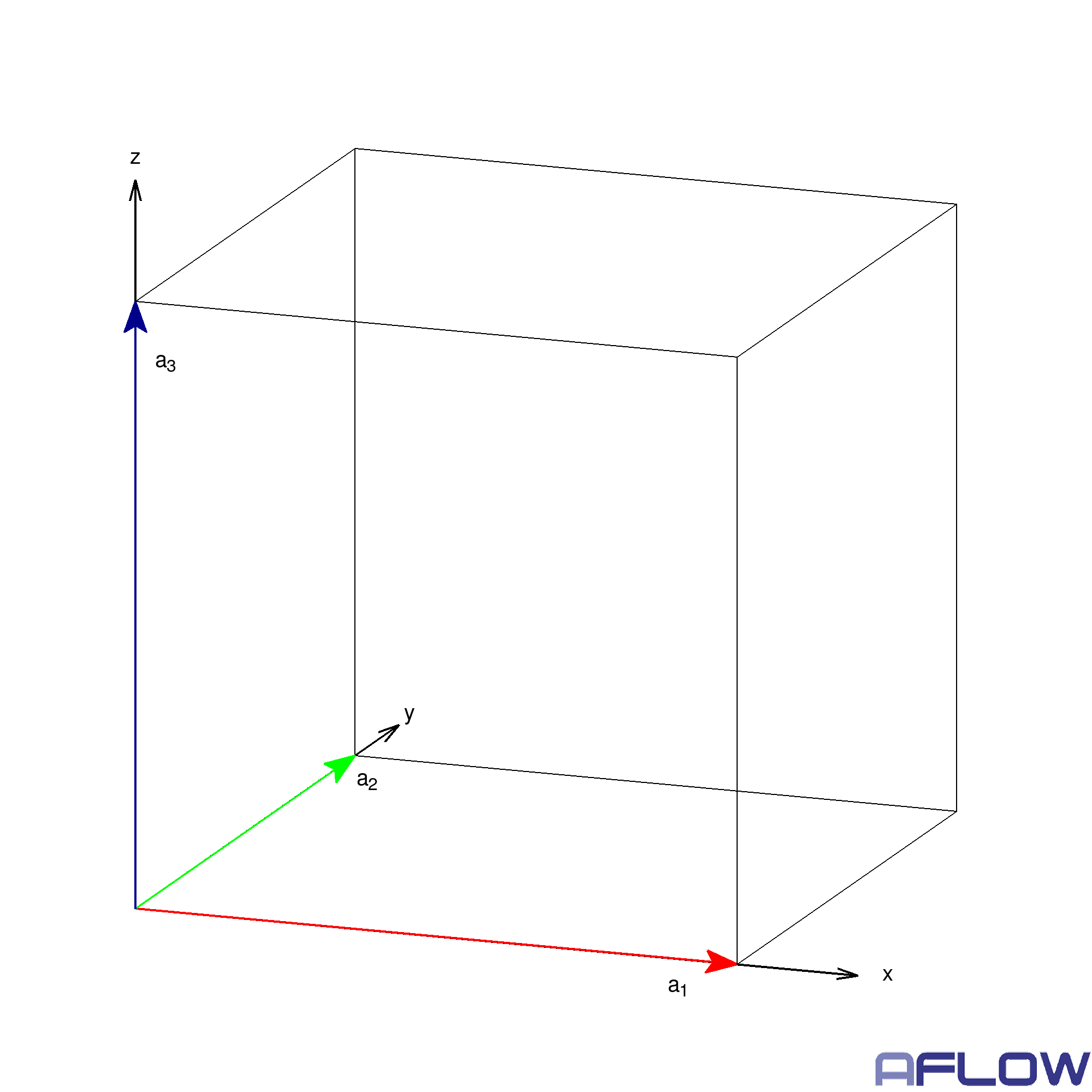

Figure 10 Construction of a simple cubic
crystal with atoms on the (12j) Wyckoff positions of
space
group space
group P23 #195. We place one atom at lattice
coordinates (0.64,0.97,0.35) and use the 3-fold
rotational symmetry around the [111] axis to place two
other atoms. We then use the 2-fold rotation operations
to place atoms along the [-111], [1-11], and [11-1]
axes, forming the final crystal. We then rotate the
crystal to show that the atomic positions are the same
no matter which 3-fold axis we look down.
At a minimum, the combination of 2-fold and 3-fold rotation
axes means that unless we place an atom on a high symmetry
point we are are actually placing at least twelve, and up to
forty-eight, atoms in the crystal. We'll provide an example
of what happens by placing a phosphorous atom at lattice
coordinates (0.64,0.97,0.35) in a simple cubic cell. The
system can be described as being in
space
group P23 #195 with atoms on the (12j) Wyckoff
positions. Figure 9 shows how we
place the atoms: first around the [111] axis, then around
the [-111] axis, followed by [1-11] and [11-1]. The result
is a crystal with twelve atoms — higher symmetry cubic
lattices could have as many as forty-eight atoms.

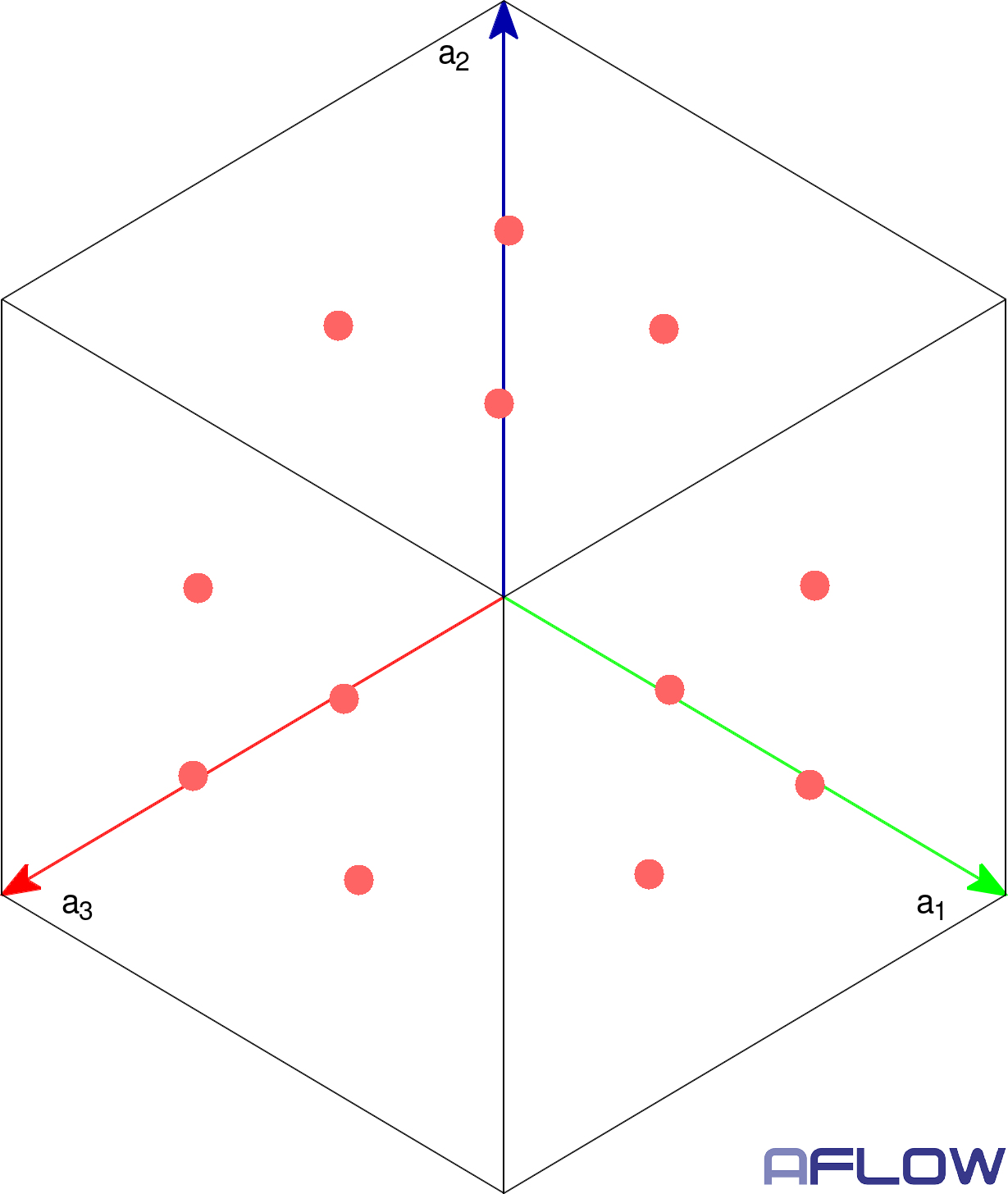

Figure 10 A view of the crystal constructed
in Figure 9 looking down the
[111] axis. We have colored all the atoms the same in
this view to emphasize that they are identical.
Figure 10 shows the final
crystal constructed in Figure 9
looking down the [111] axis. In this view we have colored
all the atoms identically to emphasize that they are
connected by symmetry. This view is reminiscent of that in
Figure 6, and indeed this
can be seen as a simple cubic lattice embedded in a
hexagonal cell. Unlike Figure 6, here there are identical
atoms in each of the six prisms. This tells us that the
simple cubic crystal will automatically contain both
31 and 32 screws, and that they will
be composed of identical atoms connected by symmetry.
The vast number of atoms in the cubic cell means that it
won't be easy to show the construction of the screw axes as
we did in the rhombohedral system – we simply do not
have enough easily distinguishable colors. Instead we will
stop using gnuplot to
view the cell and instead
use Jmol.
Figure 11 shows the same cell as
found in Figure 9 and
Figure 10, but now we have
replaced the colored circles by balls representing
phosphorous atoms. If you want to play with this yourself,
you can download the
Crystallographic Information File (CIF) for this very
hypothetical structure
here.‡‡

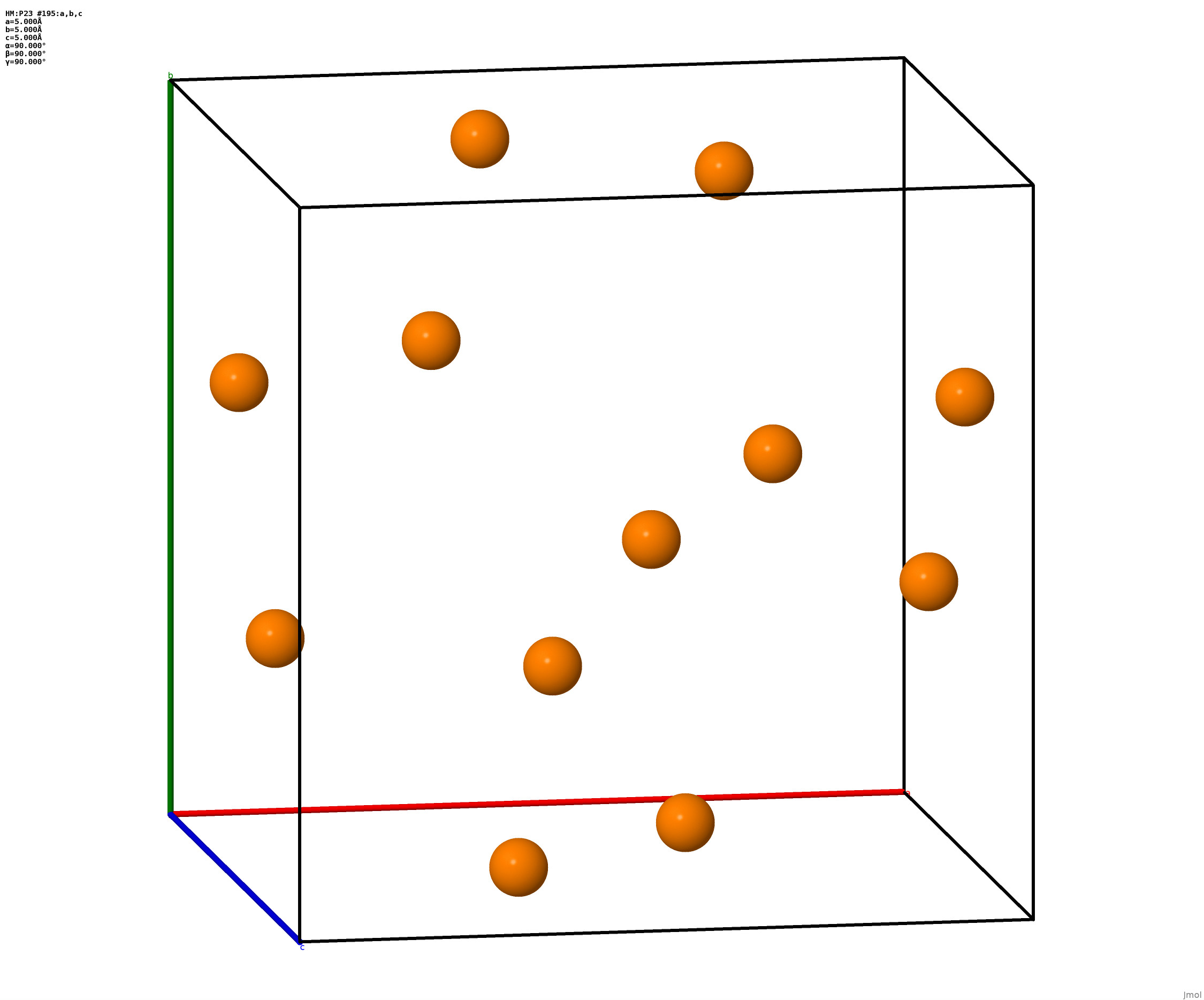

Figure 11 A hypothetical phosphorous
structure with atoms in space group P23 #195 with atoms
on the (12j) Wyckoff site, generated
by this CIF.
We obviously can not see the screw axes from that view. The
last section showed that we needed to properly stack at
least seven unit cells to see the screw. Since the cubic
system is richer than the rhombohedral system we massively
overkill the problem by using Jmol to
produce a 4x4x4 block of the cubic unit cell shown
in Figure 11. We then rotate the
system so that so we look down the [111] axis, and zoom in
so that we can see the conventional hexagonal cell. The
result is shown in Figure 12,
and again you can play with it yourself
using this Jmol state
file.

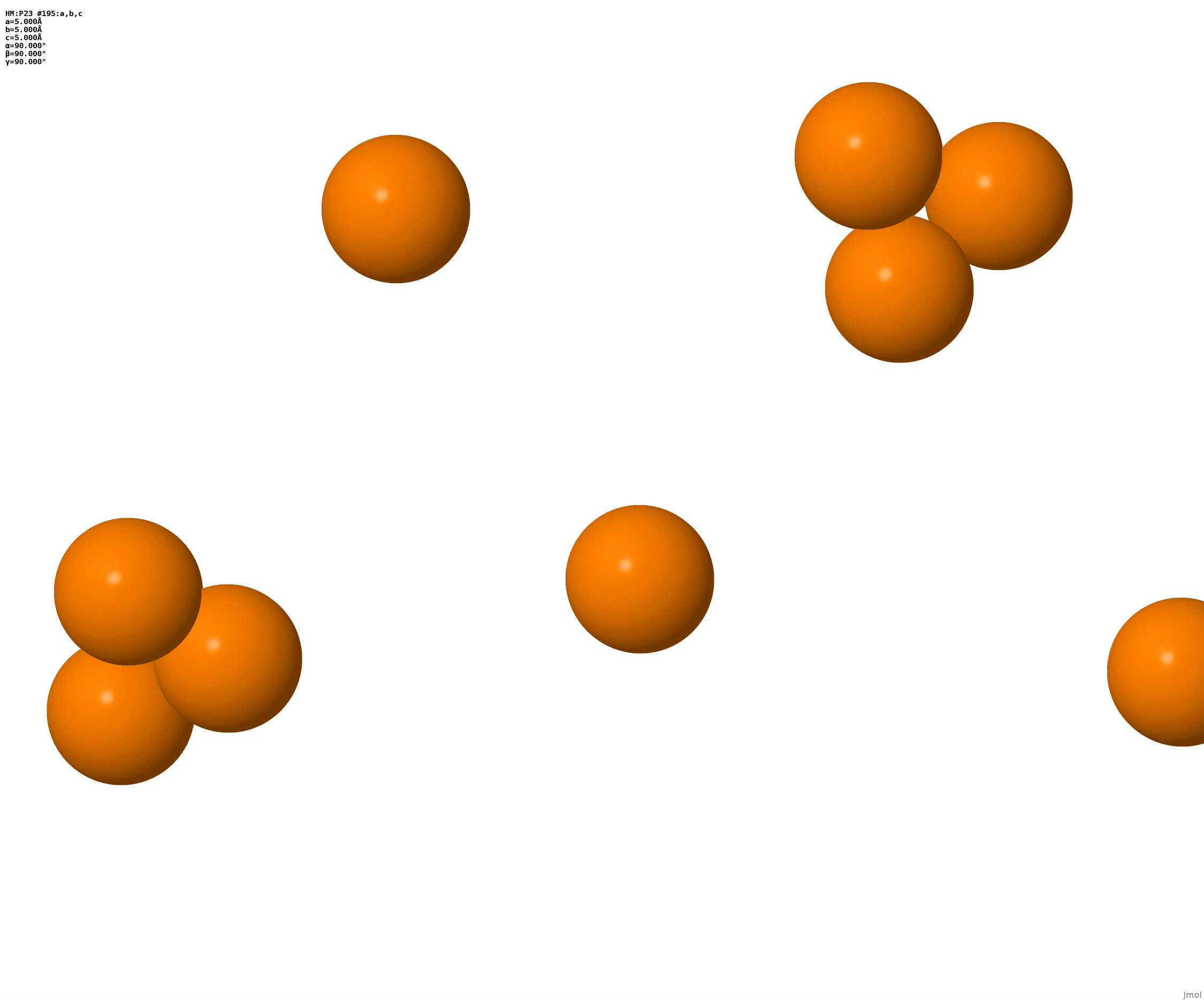

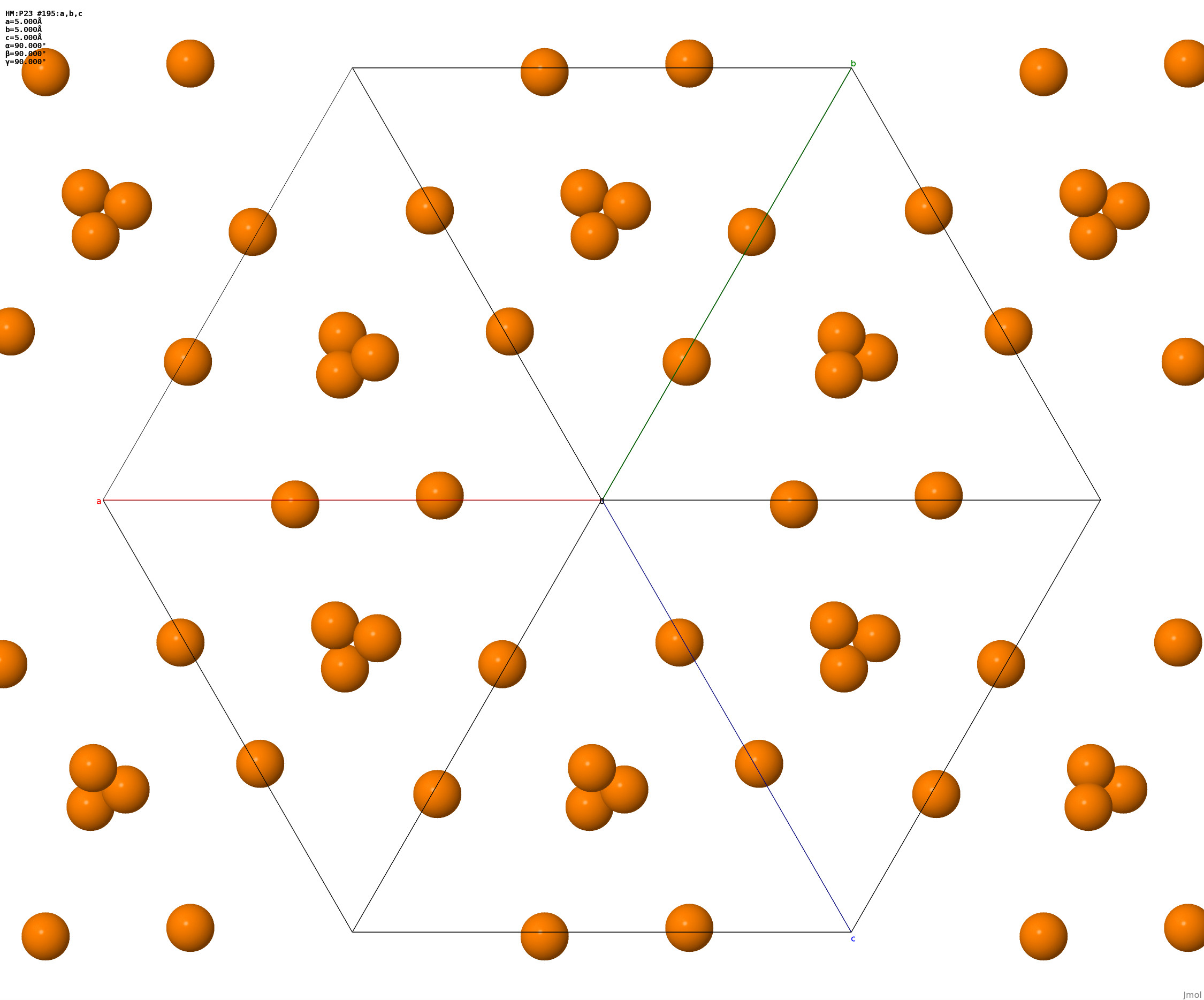

Figure 12 A view of the hypothetical
phosphorous structure shown
in Figure 11 looking down the
[111] axis. The 31 and 33 screw
axes are clearly visible. The a, b, and c axes drawn in
the figure correspond the
the a1, a2,
and a3 axes of the simple
cubic lattice. The lower triangular prism and the
prisms 120° away from it show a 31 screw,
while the upper triangle and its 120° images show
the 32 screw. These screws are all composed
of phosphorous atoms connected by symmetry. There are
identical screw axes in all four <111> directions,
as can be seen by
downloading this
Jmol state file and rotating it
using Jmol.
We can see that the phosphorous atoms form both
31 and 32 screws. Unlike the
31 and 32 screws in the rhombohedral
system these two screws cannot be composed of different
atoms. They are connected by the rotational symmetries of
the cubic system, and so all the atoms in both sets of
screws must be identical. In addition, the cubic symmetries
tell us that if we look down a [-111], [1-11], or [11-1]
axis, which you can do by manipulating
the Jmol state
file, we will see the same image. The bottom line is
that a cubic system, and we mean any cubic system,
has multiple and connected 31/32 axes
along every <111> direction.
Just because the 31 and 32 are
generated from the symmetry-connected phosphorous atoms
doesn't mean that the screws look identical. We can't see
the difference very well in Figure
10, so we blow up part of the image to
produce Figure 13, which shows
an enlargement of the upper left side
of Figure 12. The left-hand
screw turns counter-clockwise, and so is a 31
screw. The right-hand screw turns counterclockwise and so
is a 32 screw. The two screws are obviously
different, even the the atoms are all connected by symmetry,
and every atom in the 31 screw is in a
32 screw oriented along another <111> axis,
and visa versa. You can see all of this by
downloading the the
Jmol state file and twirling it around.
Figure 13 An enlargement of the upper left
part of Figure 12, showing
a 31 screw on the left and a 32
screw on the right. Although the atoms shown here are
connected by symmetry, the two screws are different.
The bottom line is that every cubic system has a set of
31 and 32 screw axes along the
<111> directions. Each screw axes contains the same
species of atom, but the spacing of atoms in the
31 and 32 screws can be different.
Readers will note that we haven't discussed the screws in
the face-centered and body-centered cubic lattices. They
are there, and can be constructed using the same principles
described above, but the resulting cells contain a very
large number of atoms and don't really show anything new.
You are welcome to generate your own fcc and bcc screws
using the procedures described above.
Wrapping Up
That's it! We've shown that the 31 and
32 screw axes in a rhombohedral or cubic system
are a natural result of the fact that three rhombohedral or
cubic cells fit into one hexagonal cell, and the resulting
stacking of primitive cells generates the screws. What's
more, we've shown that all cubic lattices have related
31 and 32 screw axes, with identical
looking screws along all four of the <111&rt; directions.
As we've seen, screw axes are a combination of rotations and
translations. Next time we'll look at another symmetry operation,
the mirror plane, and what happens when you add mirrors and
translations (it's called a glide plane).
Resources
AFLOW
AFLOW
(Automatic FLOW) is an open-source package which can
be used to generate and run first-principles electronic
structure calculations for a variety of codes. It can
also be used to analyze and compare crystal structures,
including the production of Crystallographic
Information Files (CIFs). This code is the primary
resource used to generate the structures in
the Encyclopedia of Crystallographic
Prototypes.
Cambridge Crystallographic Data Centre
(CCDC)
The Crystallographic
Data Centre (CCDC) hosts both the organic Cambridge
Structural Database and the Inorganic Crystal Structure
Database, with
a search
engine which allows free, albeit somewhat restricted,
access to structures in both the CSD and the CCDC.
Cambridge Structural Database
(CSD)
Cambridge
Structural Database (CSD) contains three-dimensional
structural data for organic and metal organic
systems. As of 1 January 2025 it contained 1,359,039
structures. There is a paywall, which can be worked
around using the CCDC search engine described above.
gnuplot
gnuplot is a
freely-distributable code for plotting graphs, including
animations. We use it extensively in these tutorials and
in other sections of the Encyclopedia.
Hypertext Book of Crystallographic Space Group
Diagrams and Tables
The Hypertext
Book of Crystallographic Space Group Diagrams and
Tables has tables and figures listing all of the
symmetry operations for each of the 230 three dimensional
space groups. Links to a space group in the text will
lead to the appropriate page on this site.
The Reader's
Guide has brief descriptions of all the symmetry
operations that can occur in the 230 space groups.
Inorganic Crystal Structure Database
(ICSD)
The Inorganic
Crystal Structure Database (ICSD) contains structural
data for inorganic crystals, though the occasional organic
crystal slips in. In early 2025 the ICSD had information
for 318901 structures,
though many are
duplicates. Like the CSD this is paywalled, but you
can get any structure from the CCDC search engine if you
are patient.
Jmol
Jmol is an
open-source Java viewer which can be used to visualize
crystal structures as well as molecules. Many of the
figures shown here were drawn with Jmol.
Space Group
Diagrams
Frank Hoffmann's extremely
useful Fascination
of Crystals and Symmetry includes a post devoted
to Space
Group Diagrams. It is slightly different from
the Hypertext Book in that it show rotation axes
and atomic positions in two different views, and includes
both rhombohedral and hexagonal settings, similar to the
paywalled International
Tables. At the moment this page incomplete, but
it does have the R3 space group diagrams we mentioned
above.
Glossary
Here is a brief definition of some of the terms used in this
article:
Basis:
The collection of items (atoms, pixels, paint drops) that
decorate a lattice to produce a crystal or a
wallpaper. Every object in a crystal structure is part of
the basis.
Basis Vectors:
The vectors pointing from the origin of the lattice to the
individual members of the basis.
Cartesian (Basis) Coordinates:
The positions of the basis vectors relative to the origin
given on a standard Cartesian grid.
Crystal:
A periodically repeated collection of objects
in n-dimensions.
Lattice:
A periodically repeated collection of points
in n-dimensions.
Lattice Coordinates:
The positions of the basis vectors expressed relative to
the chosen primitive vectors of the system.
Miller Index
The Miller
Index is a system for denoting directions and plane
orientations in a crystal lattice. For our purposes we're
interested in directions [lmn], where l, m, and n are
integers and the type of brackets used are very important.
This [lmn] notation indicates a vector parallel to
$\ell {\bf a}_{1} + m {\bf a}_{2} + n {\bf a}_{3}$
where the ai are the primitive
vectors of the lattice. The notation <lmn>
indicates all directions equivalent to [lmn] by symmetry.
In a cubic crystal <100> refers to the [100], [010],
and [001] directions, while <111> refers to [111],
[-111], [1-11], and [11-1].
Mirror Plane
If a crystal has a mirror plane, the atoms on one side of
the plane are a reflection of the atoms on the other side
of the plane. To simplify notation the origin of the
lattice is often taken to be on the mirror plane, though
this does not need to be the
case.†.
Primitive Vectors:
A set of vectors that defines the allowed shifts in the
origin of the lattice that do not violate translational
symmetry.
Rotational Symmetry:
A rotation of the crystal about an axis which produces a
structure indistinguishable from the original.
Screw Axis
A combination of translational and rotational symmetry:
a translation along an axis of some amount combines
with a rotation around that axis, leading to a structure
which is identical the first structure.
Translational Symmetry:
A shift of the origin of a crystal that produces a structure
indistinguishable from the original.
Unit Cell:
The (non-unique) smallest volume (smallest area in two
dimensions) of space that reproduces all of the
information about the crystal structure, and which can be
periodically tiled to create the entire structure.
Wigner-Seitz Cell
A uniquely defined unit cell consisting of all spatial
points closer to a given lattice point than to any other
lattice point.
Wyckoff Positions:
A subgroup of a space group that is itself a group, or
irreducible representation. If an atom in a crystal is
known to be at a given Wyckoff position, there is an
identical atom at all the points in subgroup.
Footnotes
† As we will see in later discussions this
“simplify the symmetry operations” approach
does not necessarily define a unique origin. Many space
groups have two possible origins which lead to different,
but equivalent, “simple” expressions of the
symmetries of the group.
‡ In the space group tables arbitrary
coordinates are always given as (x,y,z), even if primitive
vectors are not along the Cartesian directions. In all
cases except the rhombohedral lattice they are given in
terms of the conventional unit cell. In the rhombohedral
case they can be given with respect to the hexagonal lattice
vectors (1)
or the rhombohedral lattice
vectors (2). To
avoid(?) confusion we will use
(xh,yh,zh) as the hexagonal
coordinates and (xr,yr,zr)
as the rhombohedral coordinates, with the two sets related
by (16).
†† It is doubtful that these steps actually
occur in Nature. If a screw axis is formed it occurs
because it minimizes the free energy of the system, and the
atoms presumably move into position simultaneously.
The structure can also be generated using
the AFLOW
command
$ aflow A_cP12_195_j:P --params=5,0.64,0.03,0.35 --cif
References
N. W. Ashcroft and N. D. Mermin, Solid State
Physics (Saunders College Publishing, Orlando, 1976),
chap. 4, pp. 73–75. A downloadable copy is available
through
the Internet Archive.
D. Hicks, M. J. Mehl, E. Gossett, C. Toher, O. Levy,
R. M. Hanson, G. L. W. Hart, and S. Curtarolo, The
AFLOW Library of Crystallographic Prototypes: Part 2,
Comput. Mater. Sci. 161, S1–S1011
(2019), doi:10.1016/j.commatsci.2018.10.043.
(arXiv link)
D. Hicks, M. J. Mehl, E. Gossett, C. Toher, O. Levy,
R. M. Hanson, G. L. W. Hart, and S. Curtarolo, The
AFLOW Library of Crystallographic Prototypes: Part 2,
Comput. Mater. Sci. 161, S1–S1011
(2019), doi:10.1016/j.commatsci.2018.10.043.
(arXiv link)
M. J. Mehl, D. Hicks, C. Toher, O. Levy, R. M. Hanson,
G. L. W. Hart, and S. Curtarolo, The AFLOW Library of
Crystallographic Prototypes: Part 1,
Comput. Mater. Sci. 136, S1–S828 (2017),
doi:10.1016/j.commatsci.2017.01.017.
(arXiv
link)
